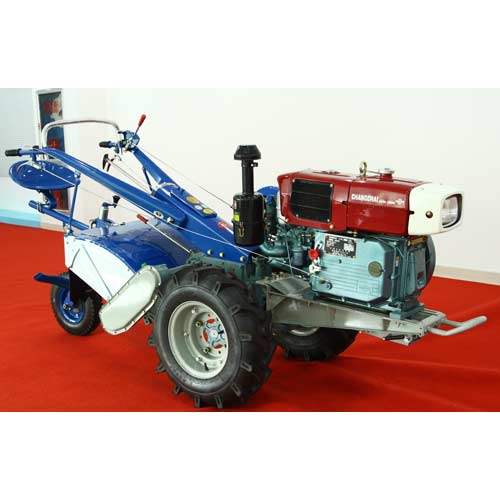

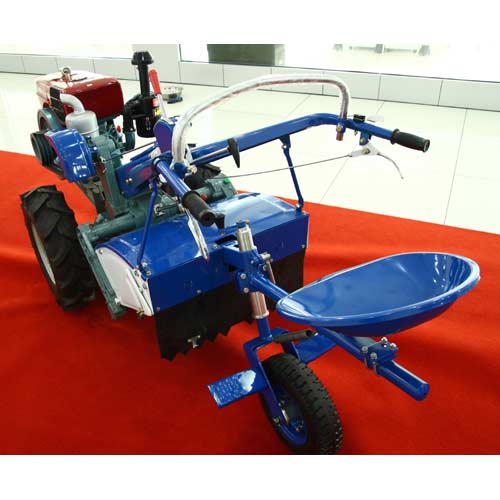

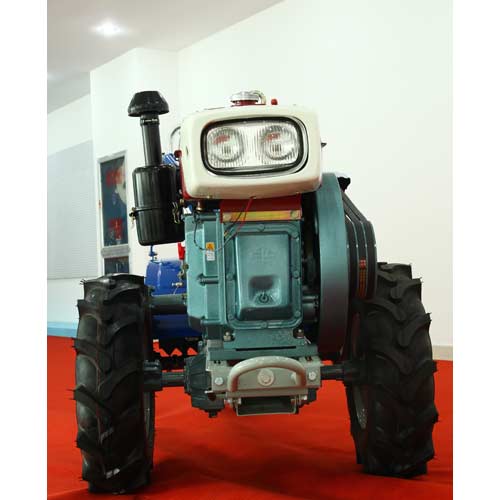

product name:DF-121 Series
Product Category: Power Tiller
Product Code:1. FIRST CLASS QUALITY IN THE WORLD
Explanation:
| Specification |
| MODEL |
DF-12L |
DF-15L |
DF-18L |
| Overall dimensions:(LxWxH) |
2680x960x1250mm |
| Wheel treack: (mm) |
Adjustable among 800,740,640,and 580 (normally use 800) |
| Working weight (with rotary tiller) |
485kg |
490kg |
500kg |
| Speed |
Forward |
1.39, 2.47, 4.15, 5.14, 9.12, 15.30 |
1.55, 2.76, 4.63, 5.74, 10.19, 17.11 |
2.17, 3.78, 6.34, 8.12, 12.6, 23.1 |
| Reverse |
1.10, 4.10 |
1.22, 4.53 |
1.74,6.23 |
| Turning speed |
Low:199, High:250 |
Low:221, High:276 |
Low:280, High:399 |
| Rotary tiller |
Width |
600mm |
| Number of blades |
18pcs |
| Engine |
Model |
ZS195N |
ZS1100N |
ZS1105N |
| Type |
Single cylinder,4-stroke,horixontal,water-cooled,diesel engine |
Single cylinder,4-stroke,horixontal,water-cooled,diesel engine |
Single cylinder,4-stroke,horixontal,water-cooled,diesel engine |
| Cooling mode |
Condenser (Radiator) |
Condenser (Radiator) |
Condenser (Radiator) |
| Type of Combustion Chamber |
Direct injection |
Direct injection |
Direct injection |
| Rated power |
9.7kw |
11.3kw |
13.5kw |
| Rated speed |
2000rpm |
2200rpm |
2200rpm |
| Fuel efficiency: |
<=244.8gl/kw.hr |
<=257gl/kw.hr |
<=246.2gl/kw.hr |
| Main Farm Implements: |
1)Anti-skid steel wheel; |
| 2)Double-plough, Disk-plough (optional) |
| 3)Trailer(optional) |
| Packing: |
Case dimensions |
116(131)x108x108mm |
| N.W/G.W.: |
500/550KG |
| Conveyance: |
Qty/20' FCL.: |
25pcs(Nude packing) |
| Qty/40'(HQ) FCL.: |
36pcs(packing inside box) | |
