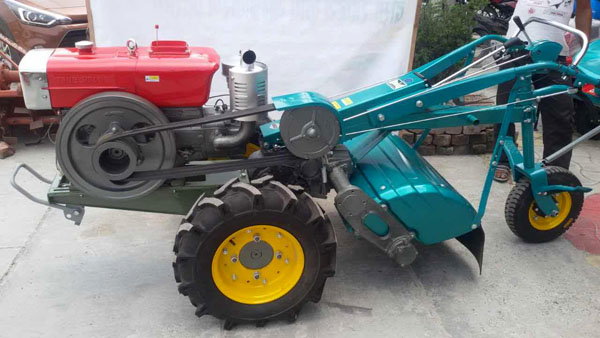

| Power Tiller |
|
| Model |
GN 121 |
| Weight |
with drawbar: 350kg: with rotary tiller: 460kg |
| Dimension(length*width*height) mm |
2950*980*1240 |
| No of tractor speed |
3-forward:1-reverse |
| Ground Clearance |
210mm |
| Tyres |
400-8, 600-12 |
| Wheel tread mm |
tyre 570-810: iron wheel: 850-1090 |
| No of Rotary tiller blade |
18 |
| No of rotary speed |
2 speeds |
| Color |
green, red... |
| Anti-skid wheel |
1 set |
|
|
| Diesel engine |
|
| Model |
S195L |
| Type |
Single-cylinder,horizoztal,4-stroke, water cooling |
| Cylinder bore (mm) |
95 |
| Piston stroke(mm) |
115 |
| 12h rated output(kW(PS)/ r/min) |
8.82(12)/2000 |
| 1h rated output (kW(PS)/ r/min) |
9.7(13.2)/2000 |
| Piston average speed (m/s) |
7.67 |
| Specific fuel consumption |
258.2g/kw.h |
| Engine size (mm (L*W*H)) |
830*500*660 |
| Fuel consumption |
Less than or equal 2.72 |
| Starting Method |
hand crank |
| Net weight(kg) |
160 |
