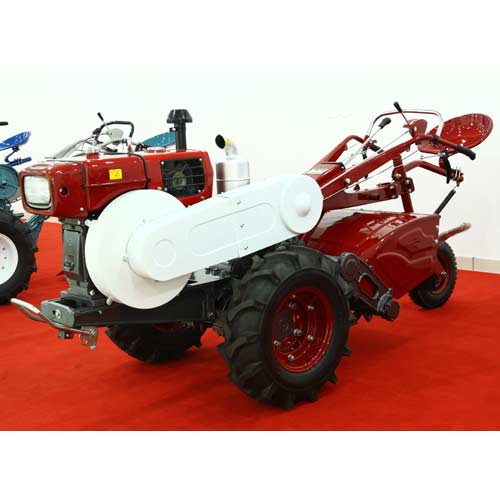

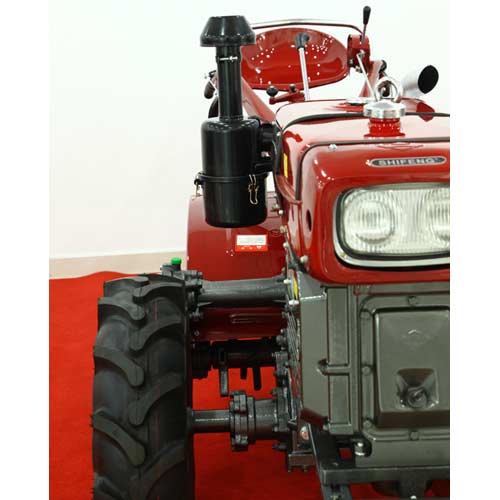

product name:GN Series India Model
Product Category: Power Tiller
Explanation:
Specification
MODEL  GN-12L (India Model)  GN-15L  (India Model)  GN-18L  (India Model)
Overall dimensions:(LxWxH) 2950x980x1240mm
Wheel treack: (mm) Adjustable among 570,630,690,750,810mm
Working weight (with rotary tiller) 510kg 515kg 520kg
Speed    Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30 1.55, 2.76, 4.63, 5.74, 10.19, 17.11 2.17, 3.78, 6.34, 8.12, 12.6, 23.1
Reverse 1.10, 4.10 1.22, 4.53 1.74,6.23
Turning speed Low:199,  High:250 Low:221,  High:276 Low:280,  High:399
Rotary tiller Width 600mm
Number of blades 18pcs
 Engine Model ZS195N ZS1100N ZS1105N
Type Single cylinder,4-stroke,horixontal,water-cooled,diesel engine Single cylinder,4-stroke,horixontal,water-cooled,diesel engine Single cylinder,4-stroke,horixontal,water-cooled,diesel engine
Cooling mode Condenser (Radiator) Condenser (Radiator) Condenser (Radiator)
Type of Combustion Chamber Direct injection Direct injection Direct injection
Rated power 9.7kw 11.3kw 13.5kw
Rated speed 2000rpm 2200rpm 2200rpm
Fuel efficiency: <=244.8gl/kw.hr <=257gl/kw.hr <=246.2gl/kw.hr
Main Farm Implements: 1)Anti-skid steel wheel;
2)Double-plough, Disk-plough (optional)
3)Trailer(optional)
Packing: Case dimensions 116(131)x108x108mm
N.W/G.W.: 550/600KG
Conveyance: Qty/20'FCL.: 20pcs(Nude packing)
Qty/40'(HQ) FCL.: 40pcs(packing inside box)
