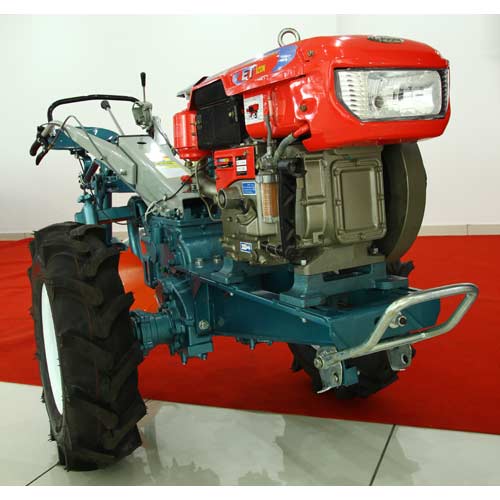

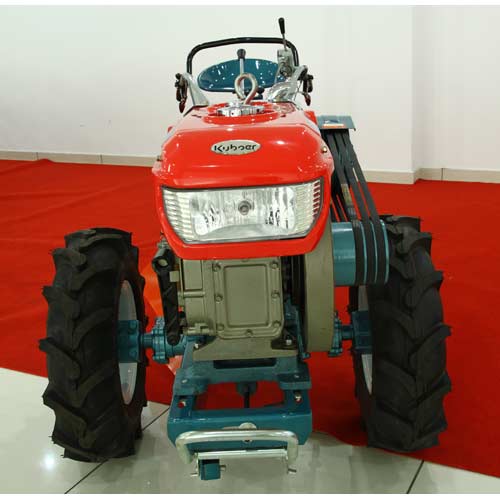

product name:GN-121B Series
Product Category: Power Tiller
Explanation:
| MODEL |
GN-121B |
| Overall dimensions:(LxWxH) |
2950x980x1240mm |
| Wheel tread |
570,630,690,750,810mm |
| Tyres |
6.00-12 |
| Ground clearance |
210mm |
| Working weight (with rotary tiller) |
500kg |
| Speed |
Forward |
1.39, 2.47, 4.15, 5.14, 9.12, 15.30 |
| Reverse |
1.10, 4.10 |
| Turning speed |
Low:199, High:250 |
| Rotary tiller |
Width |
600mm |
| Number of blades |
18pcs |
| Engine |
Model |
ET120N |
| Type |
Single cylinder horizontal four stroke diesel engine |
| Cooling mode |
Condenser (Radiator) |
| Rated power |
8.8(12)Kw |
| Rated speed |
2400rpm |
| Fuel efficiency: |
<=286gl/kw.hr |
| Main Farm Implements: |
1)Anti-skid steel wheel; |
| 2)Double-plough (optional) |
| 3)Trailer(optional) |
| Packing: |
Case dimensions |
116(131)x108x108mm |
| |
N.W/G.W.: |
500/600KG |
| Conveyance: |
Qty/20FCL.: |
20pcs | |
